This Battle Born Offroad Fox Shock kit is the premier upgrade for 2017-2020 Ford Raptor. Designed around aluminum 3.0 performance series shocks, these shocks are the perfect upgrade for the daily driver to the offroad warrior. Paired with a set of chromoly Elevate Billet Aluminum upper control arms, these arms include a massive FK uniball and heimed rod ends for a durable for OEM fit. Durable, stout and performance in mind, this is the must have kit for your Raptor!
Part Descriptions

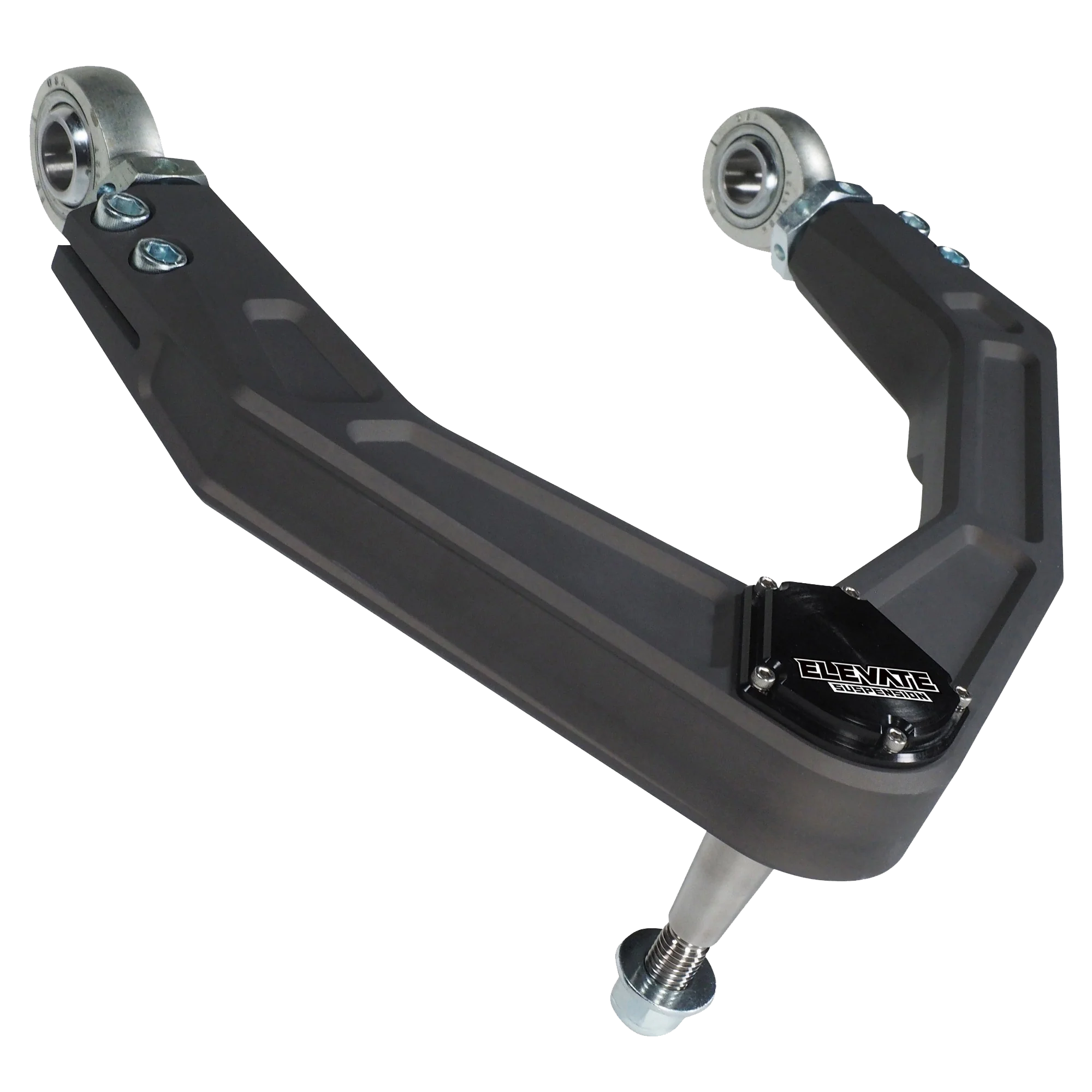

UCA - 1001
The Ford Raptor is an excellent truck and every generation of it keeps getting better. While amazing in stock form, our Elevate Upper Control Arms can make the Raptor even better. Lightweight billet 6061-T6 aluminum construction and high-quality FK 7/8-inch rod ends make our arms extremely stout. Massive 1-inch FK uniballs with a custom-made 17-4 stainless steel pins add further strength and eke out every available amount of wheel travel when paired with extended travel coilovers. Adding long-lasting protection and good looks is a mil-spec Type III anodized hard coat. Double adjusters allow for easy on-vehicle adjustment of both camber and caster for proper alignment. Strong, functional, and sexy, our Upper Control Arms will help to unlock your Ford Raptor's front suspension's true potential.
2017-2018 Non Live Valve - 883-06-140 (Front) / 883-09-141 (Rear)

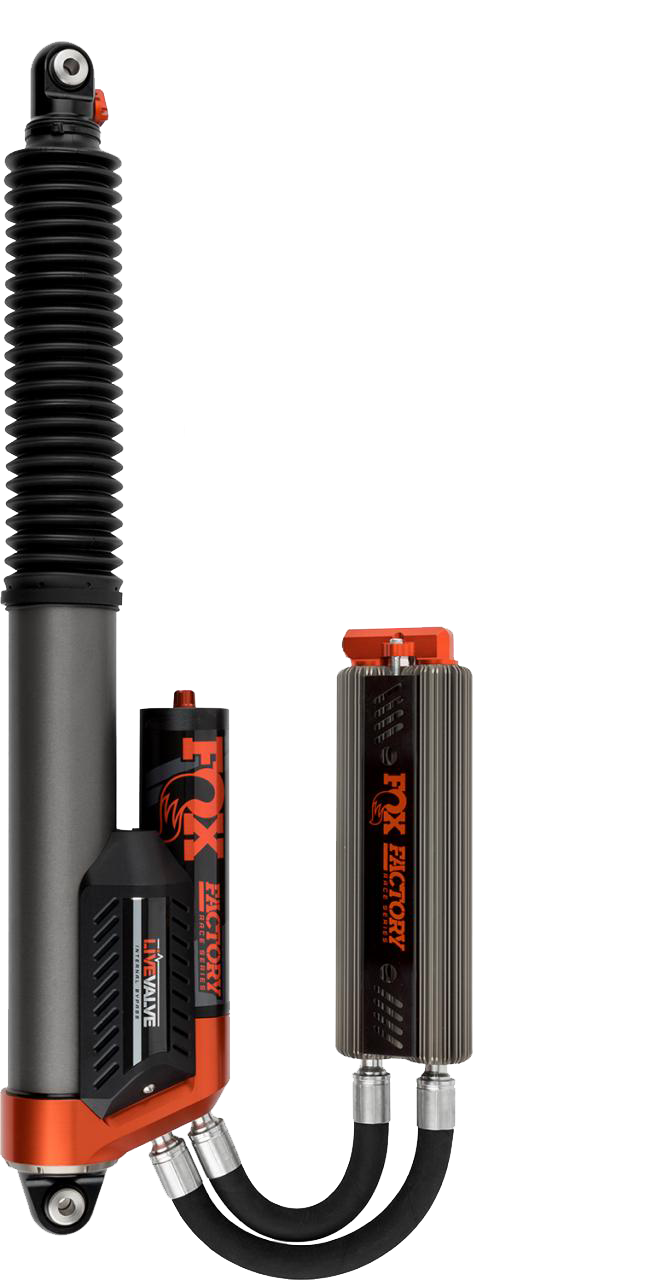

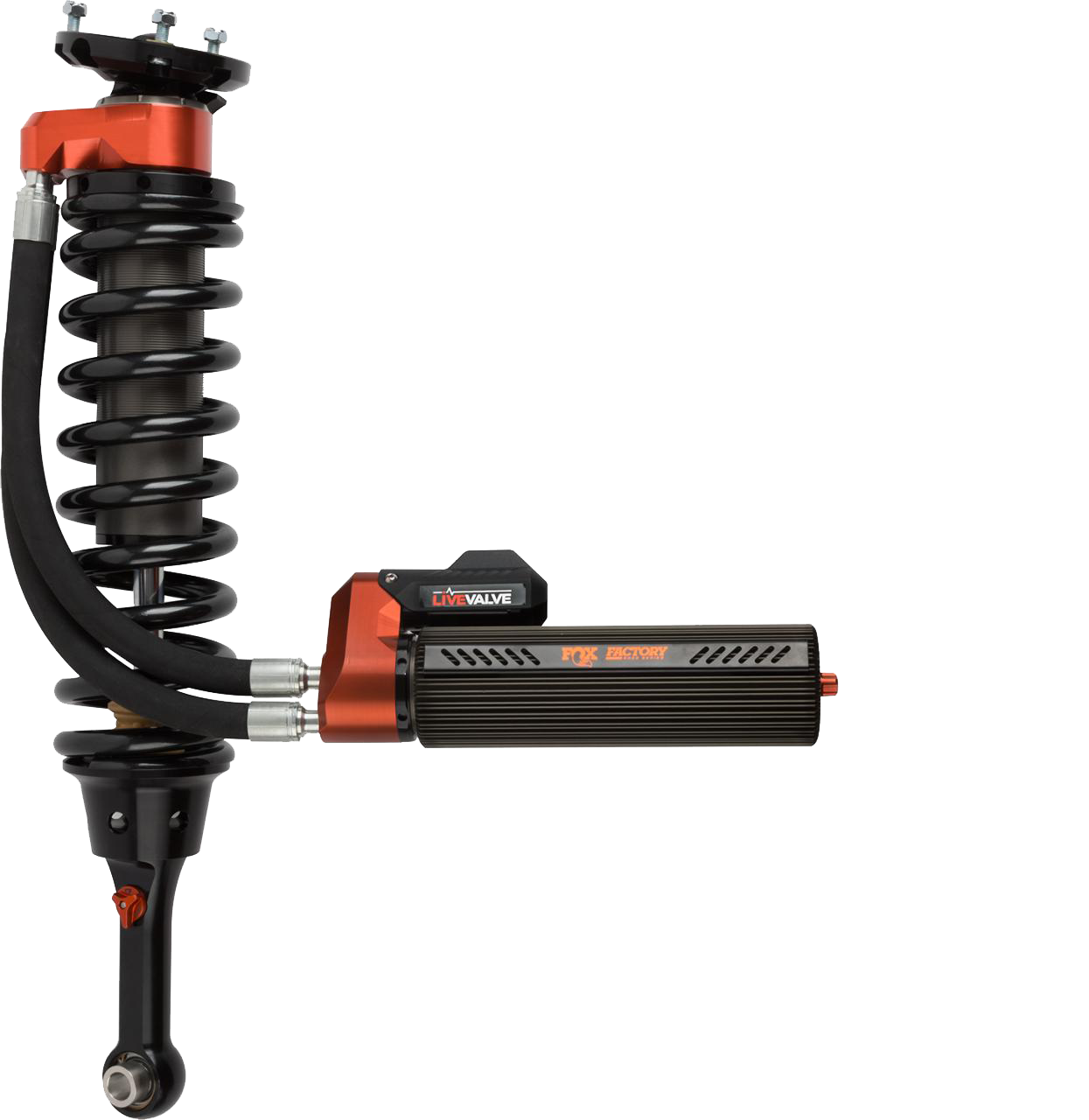

2019-2020 Live Valve - 883-09-153 (Rear) / 883-06-153 (Front)
By using vehicle sensors and accelerometers, Live Valve can instantly adapt to inertial, steering, braking, and acceleration inputs to actively maximize handling, comfort, and bottom-out resistance. Three-way quick switch adjusters allow the shocks to be optimized for On-Road Performance, On-Road Comfort, or Off-Road Performance while the external cooling system ensures they will perform at their best when you are blasting through the desert.
- NEW Live Valve semi active technology equipped, plug and play integration to factory electronics
- NEW Rebound and compression adjustable via Quick Switch Technology (QS3)
- NEW Rotatable hose fittings for easy installation
- FOX patented, position-sensitive Internal Bypass damping technology
Taking full advantage of its extensive knowledge of the Raptor’s suspension as the OEM shock supplier along with its rich racing heritage, FOX has developed an off-road race inspired upgraded shock package for the second generation Raptor. The Factory Race Series upgrade kit for the 17-18 Raptor is designed to take the truck’s renowned off-road performance to the next level by adding significant adjustability and improved cooling efficiency without compromising every day ride quality.
- Position-sensitive External Bypass damping technology features 4 adjustable bypass zones
- Quick Adjust Bypass (QAB) adjusters allow tool-free bypass zone adjustment
- Race-developed External Cooling System (ECS2) provides increased cooling efficiency
- Internal & external aluminum fins increase cooling surface area & heat dissipation
- Forced, unidirectional fluid circulation maximizes cooling efficiency
- ECS2 mounting hardware included
- Steel External Bypass body with new, proprietary coating for improved durability
- Anodized aluminum piggyback reservoir and cooler resists corrosion and helps dissipates heat
- 7/8” hard chrome plated 17-4 H900 stainless steel shafts
- Hard anodized 6061-T6 billet aluminum high flow race piston
- Heat treated steel spherical heim mounting
